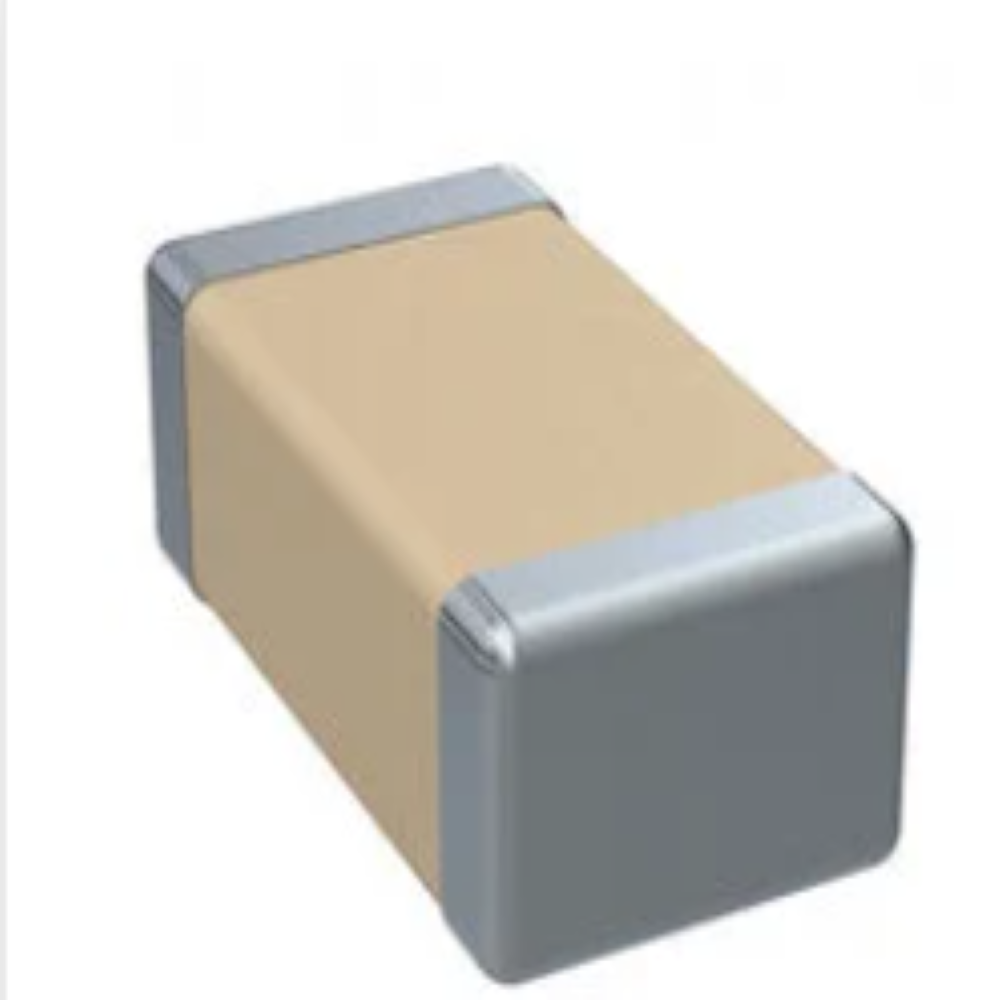

CAP CER 470PF 100V C0G/NP0 0805

KEMET’s C Series C0G dielectric features a 125°C maximum operating temperature and is considered “stable”. The C0G dielectric is a Class I material. Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. C0G exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature. Capacitance change is limited to ±30 ppm/ºC from −55°C to +125°C.

Operating temperature range from −55°C to +125°C
Capacitance range includes E24 decade values from 0.5 pF up to 0.47 μF
EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
DC voltage ratings from 10V to 250V
Available capacitance tolerances of ±0.10pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10% and ±20%
High thermal stability
High ripple current capability
Extremely low ESR and ESL
No capacitance decay with time
No piezoelectric noise
Capacitance change is limited to ±30ppm/°C from -55 to 125°C
Capacitance offerings ranging from 0.5pF up to 0.47μF
