STM32F446RET6 IC MCU 32BIT 512KB FLASH 64LQFP

STM32F446RET6 is a high-performance ARM-based 32bit microcontroller. The Cortex-M4 core features RISC core operating at a frequency of up to 180MHz, floating point unit (FPU) single precision supporting all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security. It offer three 12bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16bit timers including two PWM timers for motor control, two general-purpose 32bit timers. These features make the microcontroller suitable for a wide range of applications, namely motor drive and control, medical equipment, industrial (PLC, inverters, circuit breakers), printers and scanners, alarm systems, video intercom and HVAC and home audio appliances.

LCD parallel interface, 8080/6800 modes
Clock, reset and supply management (1.7V to 3.6V application supply and I/Os)
Low power: sleep, stop and standby modes
Up to 17 timers: 2x watchdog, 1x SysTick timer, up to twelve 16bit and two 32bit timers up to 180MHz
8 to 14bit parallel camera interface up to 54Mbytes/s and 96bit unique ID
CRC calculation unit and RTC: subsecond accuracy, hardware calendar
Up to 20 communication interfaces
Up to 114 I/O ports with interrupt capability
512Kbytes of flash memory, 128Kbytes of SRAM, dual mode QuadSPI interface

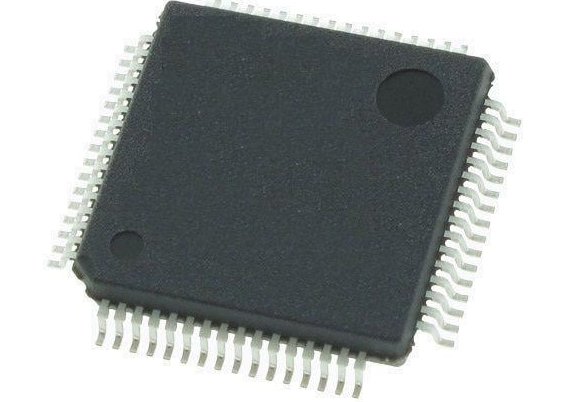

64 pins LQFP package and industrial temperature range -40 to 85°C
